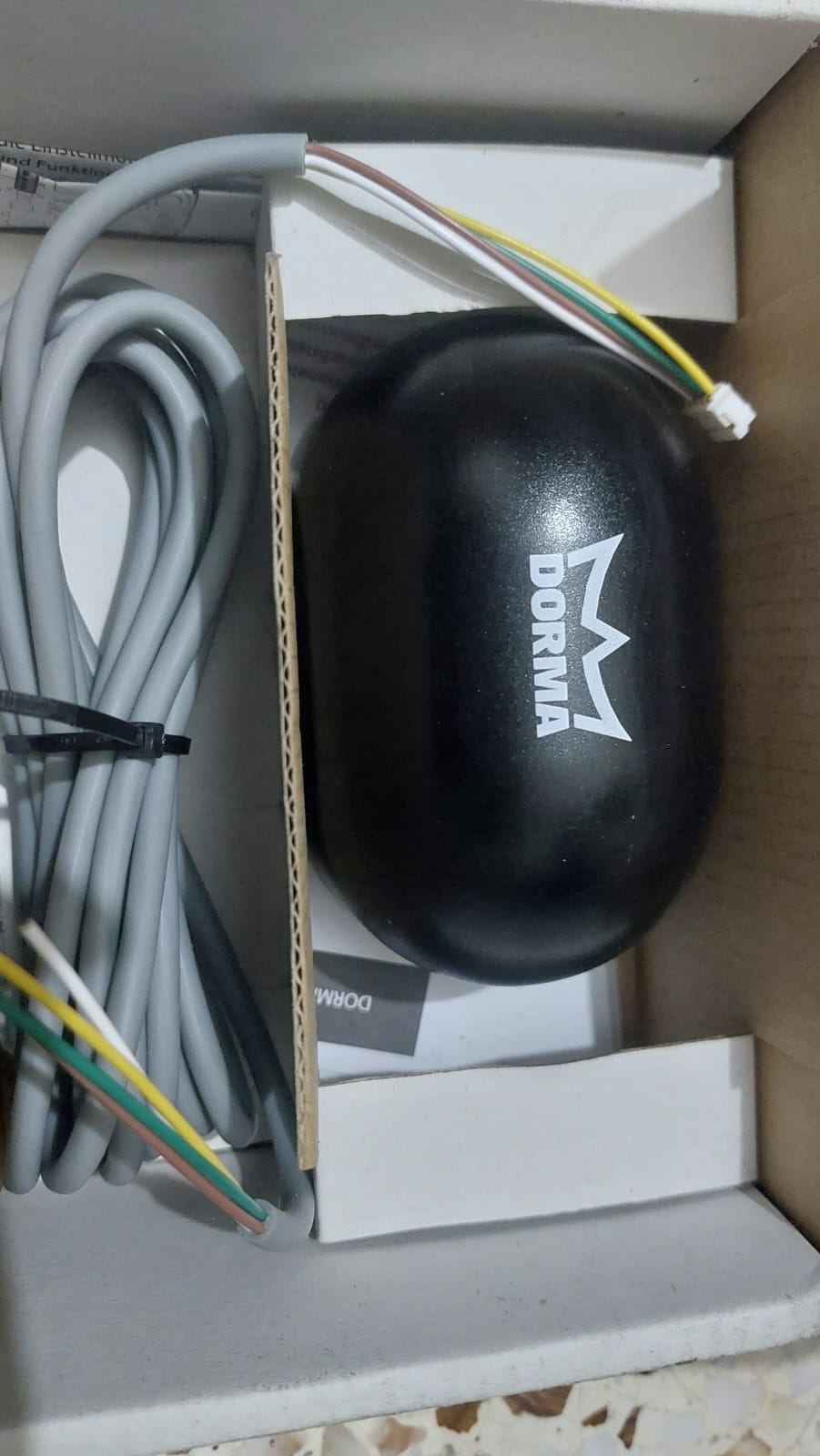

Dorma Microwave Motion Sensor – Smart Detection for Automatic Doors

Dorma Microwave Motion Sensor – Smart Detection for Automatic Doors

Upgrade your automatic door system with the advanced Dorma Microwave Motion Sensor, designed for precise motion detection and reliable door activation. This industrial-grade sensor is perfect for commercial spaces, warehouses, and high-traffic areas where safety, efficiency, and automation matter most.

🌀 Key Features:

Microwave sensor with precise motion detection

Wide detection angle: 90°–100° (adjustable)

Adjustable mounting and antenna orientation

LED status display for easy setup

IP65 weather-resistant enclosure for outdoor use

⚙️ Technical Specifications:

Operating Voltage: 12–36V DC / 12–28V AC

Output: Relay NO/NC

Detection Range: up to 4m (height adjustable)

Temperature Range: -20°C to +60°C

Protection Rating: IP65

🔌 Wiring Color Code:

White = GND

Brown = Power (12–36V DC / 12–28V AC)

Green = COM

Yellow = NO/NC

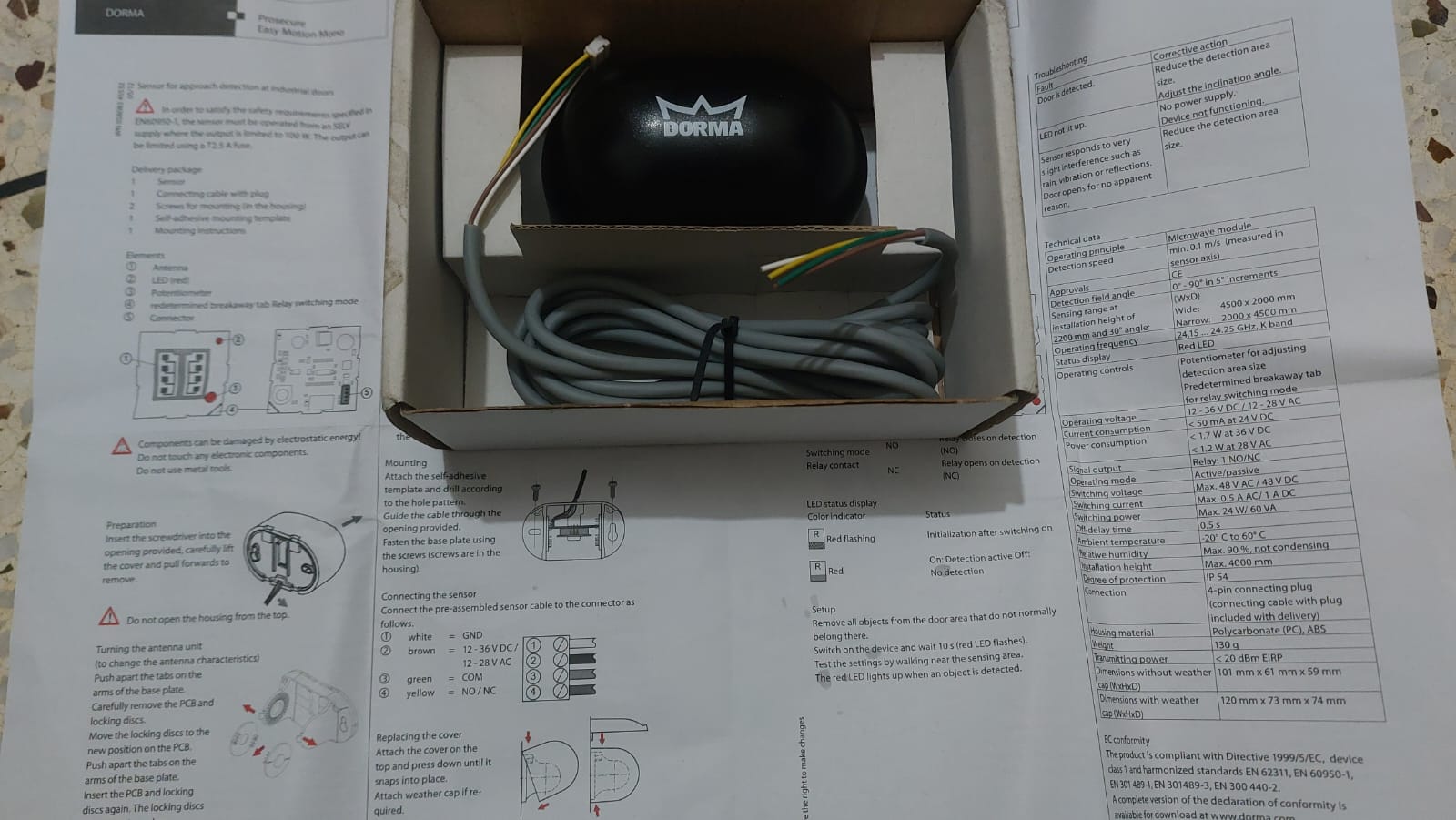

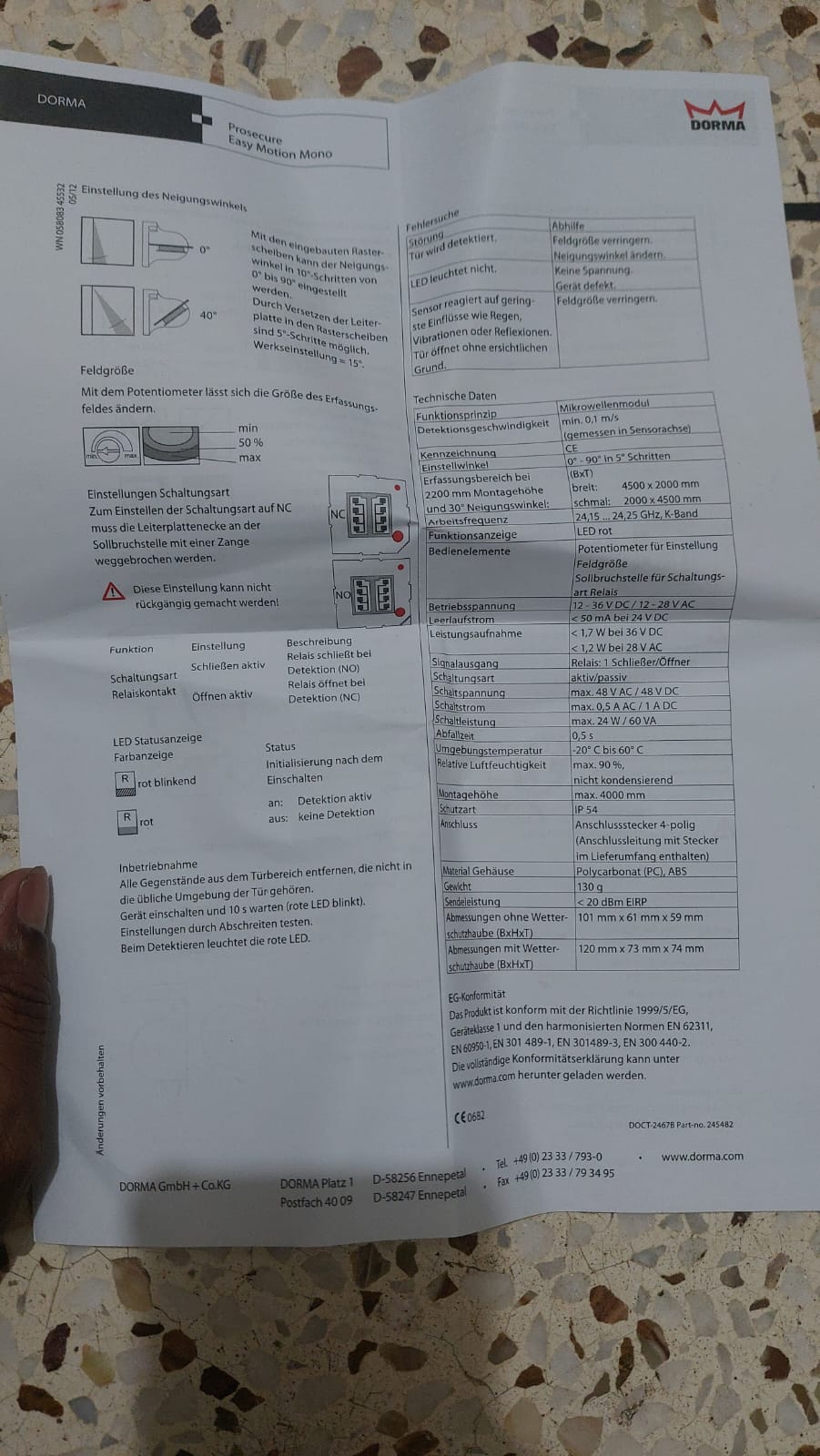

🔧 Easy Installation: Includes mounting template, screws, and detailed installation guide. Simply align, drill, connect, and secure.

💡 Applications:

Automatic sliding or swing doors

Industrial gates

Office entrances

Hospitals & shopping malls
