ED 100 Automatic Swing Door by Auto Tech BD

Modern architecture and commercial spaces require a blend of security, luxury, and convenience. To make your entrances smart and touchless (স্পর্শহীন), Auto Tech BD introduces the L100 Automatic Swing Door System. This complete solution guide explains why the L100 mechanism is the ultimate choice for offices, hospitals, showrooms, and premium retail spaces in Bangladesh.

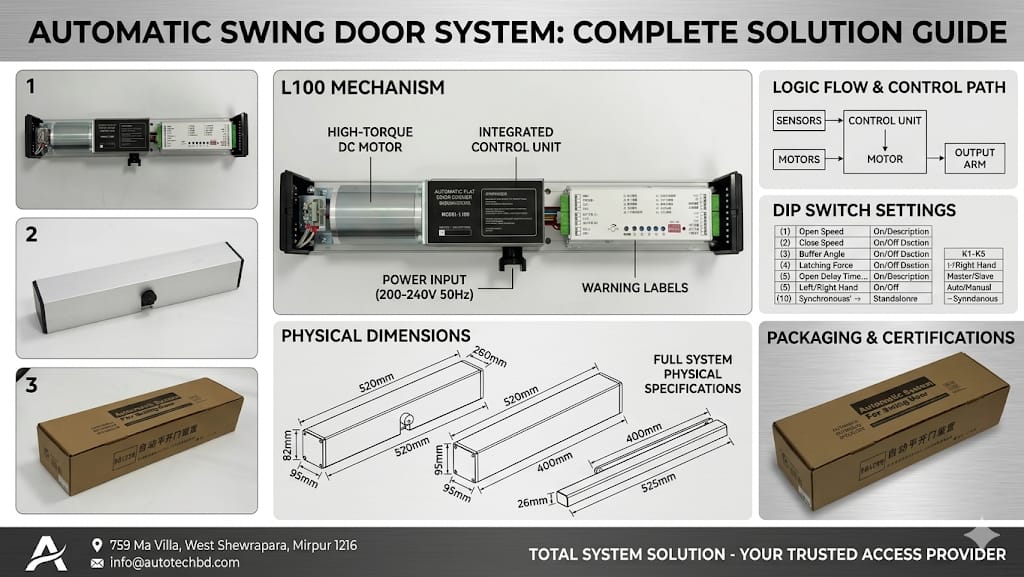

>Key Features of the L100 Mechanism:

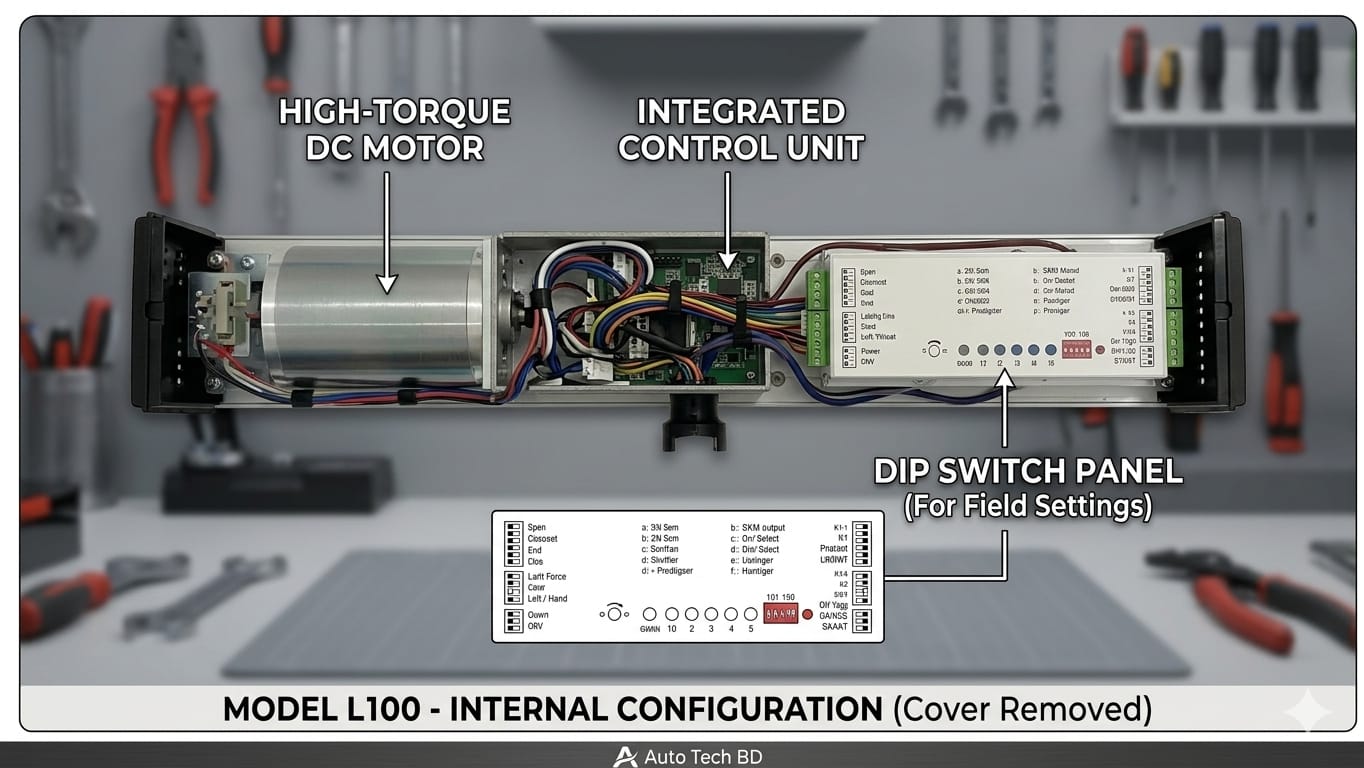

High-Torque DC Motor: Engineered to operate heavy and large-sized swing doors smoothly and silently (নিঃশব্দে).
>Integrated Control Unit: Advanced logic flow control path ensures seamless communication between sensors and the motor, delivering flawless opening and closing synchronization.
Customizable DIP Switch Settings: * Adjustable Open & Close Speed.
Buffer Angle and Latching Force customization.
Open Delay Time management based on foot traffic.
Master/Slave and Synchronous configuration for double doors.
Power Input Compatibility: Fully compatible with standard Bangladeshi voltage layouts (200-240V AC, 50Hz).

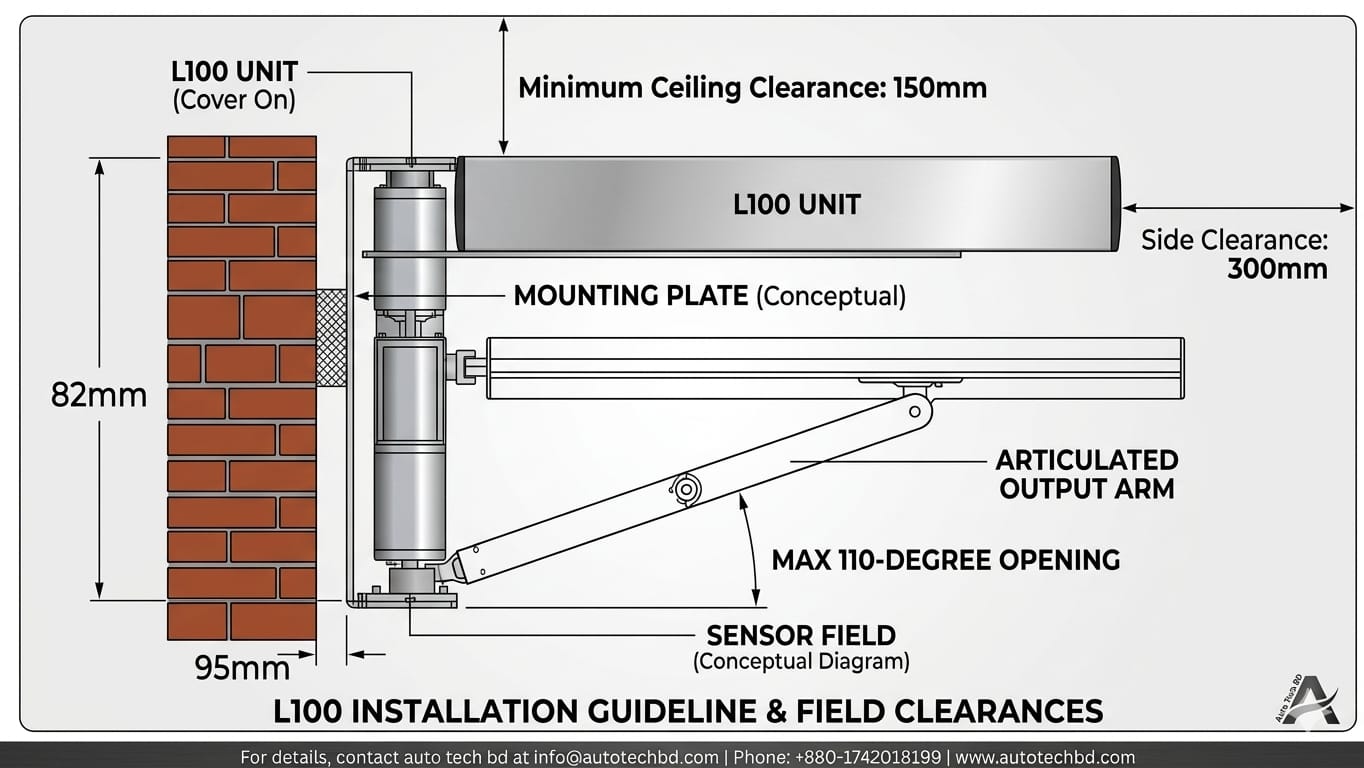

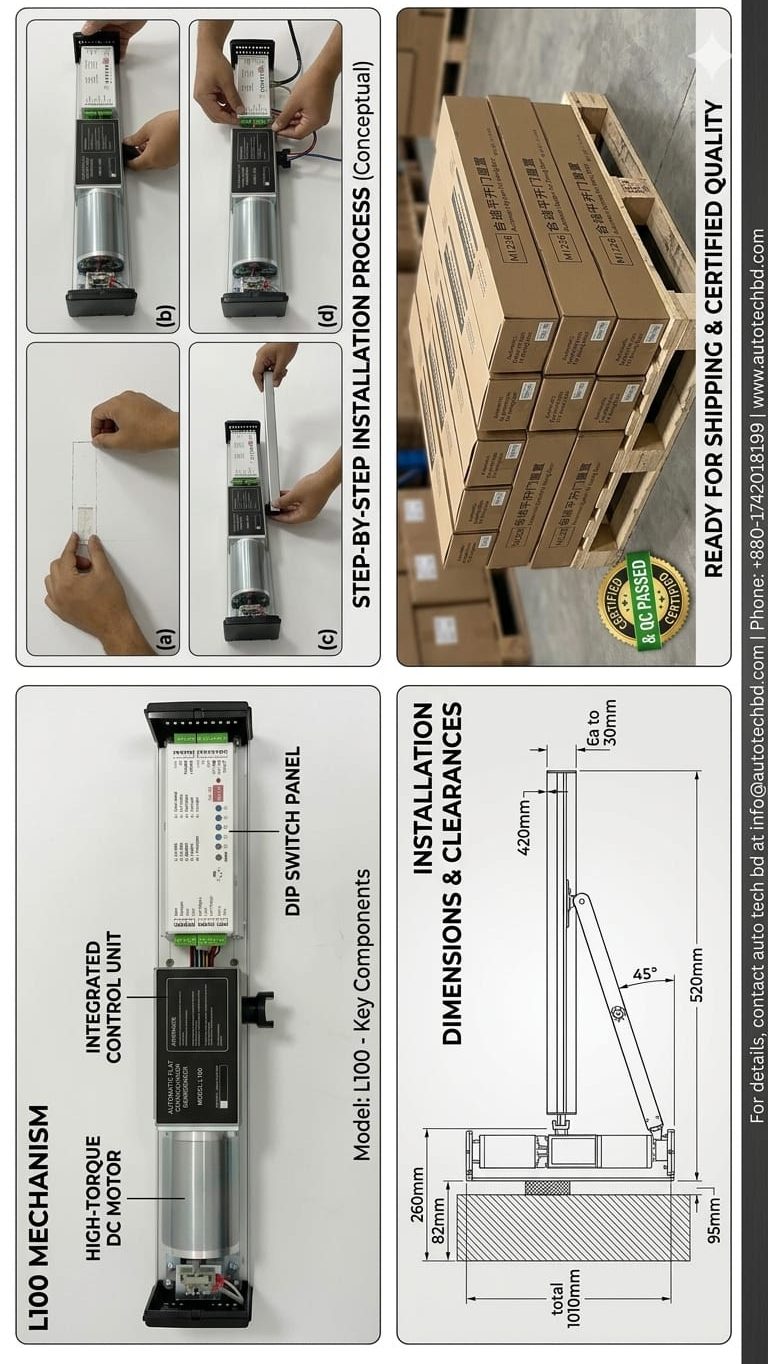

>Physical Dimensions & Sleek Design
The compact and minimalist design of the L100 ensures it blends perfectly with any modern interior or glass architectural setup.
>Main Operator Length: 520mm
Height & Width: 82mm x 95mm
Track/Output Arm Length: 400mm & 525mm options for perfect installation flexible to your door size.

Technical Specifications Table / কারিগরি তথ্য]

Feature / Specification Technical Details
Brand / Provider Auto Tech BD
Model L100 Mechanism
Motor Type High-Torque DC Motor
Power Supply 200-240V AC, 50Hz
Control Unit Integrated Intelligent Controller
Adjustment System Multi-functional DIP Switch Settings
Dimensions (Main Body) 520mm x 95mm x 82mm
Application Commercial, Office, Hospital, and Premium Retail Swing Doors

Why Choose Auto Tech BD? (আমরা কেন সেরা?)]
১. Premium Product Quality: আমরা প্রোডাক্টের স্থায়িত্ব এবং কোয়ালিটির ব্যাপারে কোনো আপস করি না।
২. Expert Technical Support: দক্ষ টেকনিশিয়ান দ্বারা নিখুঁত ইনস্টলেশন এবং প্রজেক্ট সেটআপ।
৩. Reliable Service: দীর্ঘমেয়াদী বিক্রয়োত্তর সেবা বা আফটার-সেলস সাপোর্টের নিশ্চয়তা।
